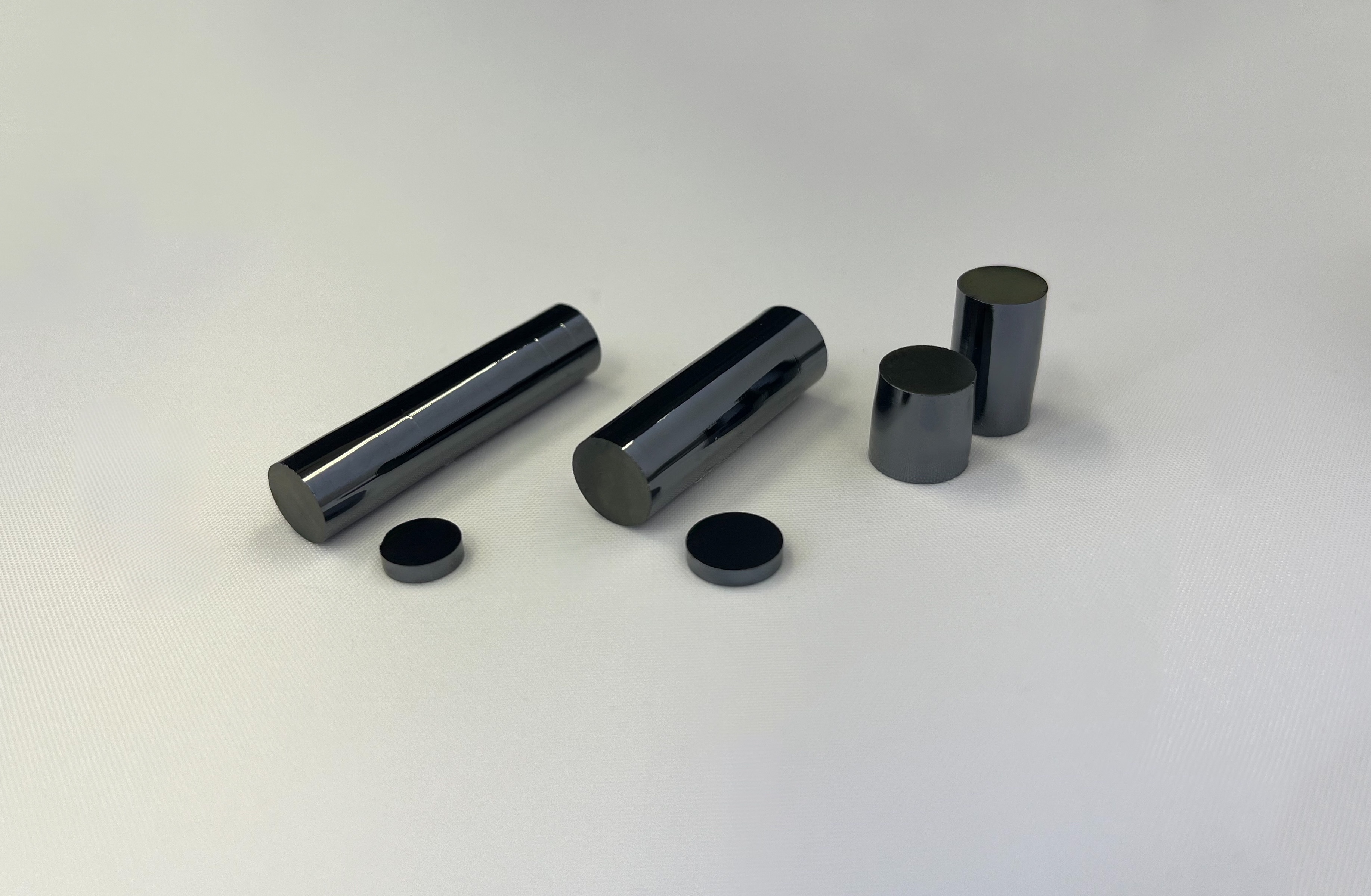

YIG (Yttrium Iron Garnet) : Y3Fe5O12

Product
· Isolator Material for Near and Mid-IR
· High purity single crystal by FZ method
· Substitutional Rare-earth Iron Garnet for various magneto-optical device
Properties

· Crystal Structure: Cubic
· Density : 5.17 g/cm³
· Latice Constant : 1.24 nm
· Melting Point : 1550℃

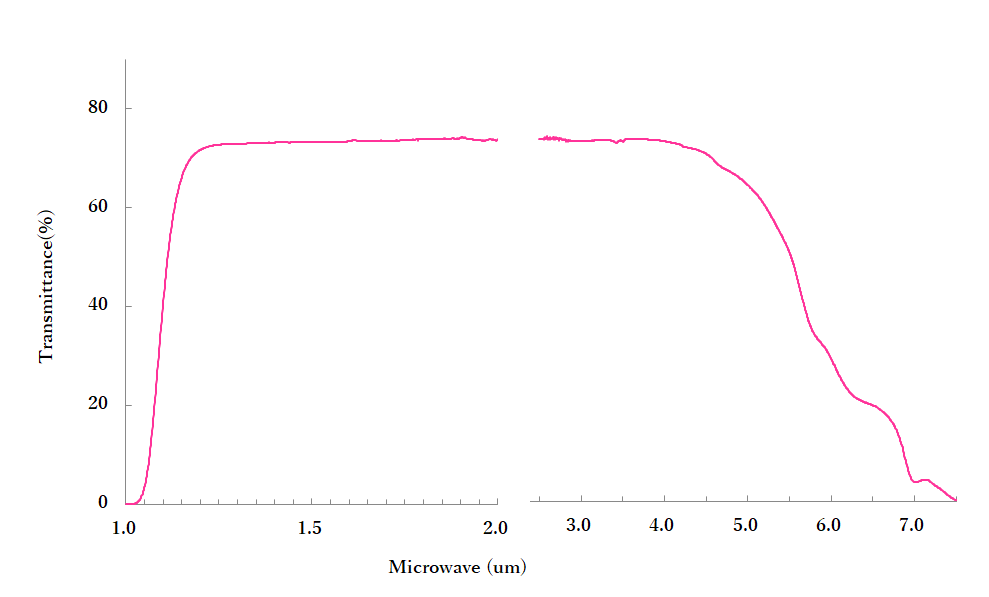

· Transmittance : Bulk/Uncoated
Specification
· Diameter : ~6 mm (Customizable)
· Length : ~100 mm
· Thickness : 0.125~2.0 mm (Customizable)
· Surface : Single Side Polish, Double Side Polish, As cut, Lapped
· Orientation: (111) (Customizable)
Inquiry
If you have any questions, please feel free to contact us.
E-mail : tsuyoshi.sato@carlit.co.jp
